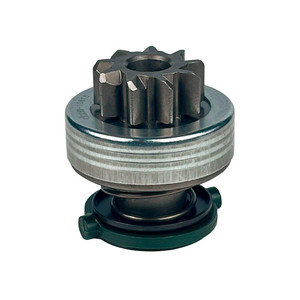

Technical specifications
| # DIENTES (#GEAR TEETH) | 9 |
| # ESTRIAS (# SPLINES) | 10 |
| LARGO (L) | 54 [mm] |
| DIAMETRO PINION (DP) | 35.8 [mm] |
| DIAMETRO BUJE (DI) | 12 [mm] |
| DIAMETRO EXTERIOR (DE) | 52 [mm] |
| SENTIDO DE GIRO (ROTATION) | HORARIO (CW) |
| EQUIVALENTE ZEN | 1650 // 1815 |
Uses
| Brand | Model | Version | Displacement | Year | OEM | Cód. Motor |
| Bosch | - | 0986021640 | - | |||
| Bosch | - | 0001109300 | - | |||
| Bosch | - | 2164 | - | |||
| Bosch | - | 0001109301 | - | |||
| Bosch | - | 0001109307 | - | |||
| Bosch | - | 0001109306 | - | |||
| Citroën | - | 5802AQ | - | |||
| Citroën | Jumper | 2.8 HDI | - | |||
| Citroën | Relay | 2.8 HDI | - | |||
| Fiat | - | MSN2026 | - | |||
| Fiat | - | 1347058080 | - | |||
| Fiat | - | 63521093 | - | |||
| Fiat | Ducato | 2.3 e 2.8 JTD | - | |||
| Fiat Iveco | City Plus | from 2009 | - | |||
| Fiat Iveco | Daily III | 2.4 e 2.8 | - | |||
| Iveco | - | 55195970 | - | |||
| Lucas Indiel | - | LRS2223 | - | |||
| Lucas Indiel | - | LRS02223 | - | |||
| Peugeot | - | 5802AQ | - | |||
| Peugeot | Boxer | 2.8 HDI | - | |||
| Reemplazo | ZEN | 1650 | - |
×
